CAFS Compressed Air Foam Helideck Fire Fighting Unit Official Demo

CAFS Helideck Unit

The 450 Gallon CAFS Helideck Unit is designed to meet multiple internal and external governing mandates to achieve total compliance harmonization.  The unique characteristics of system design to include self-containment and integrated remote oscillating foam monitors (designed to deliver Class A and Class B Foam), places this System in its own category of superior performance and application of use.

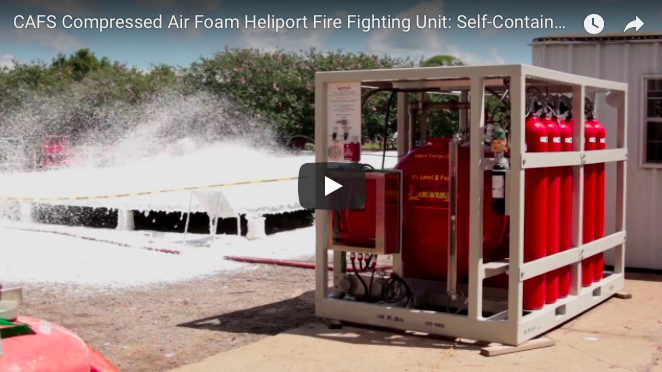

The accompanied official demonstration video illustrates the speed at which coverage is achieved via the foam monitors based on calculations of the Heliport or Helideck’s “D-Value” (overall dimensions).  From the monitor coverage on the Helideck, a dense foam blanket is applied as a barrier to any exposed surface fuel and ambient oxygen.

The mitigation of additional fuel reacting with the fire by the foam barrier, disrupts the chemical reaction that would cause rapid spread. In addition to suppressing the active fire, the CAF diminishes heat by insulating (using the trapped air within the CAF bubble structure), reflecting radiant heat, thus preventing excess heat which also intensifies the hazard.

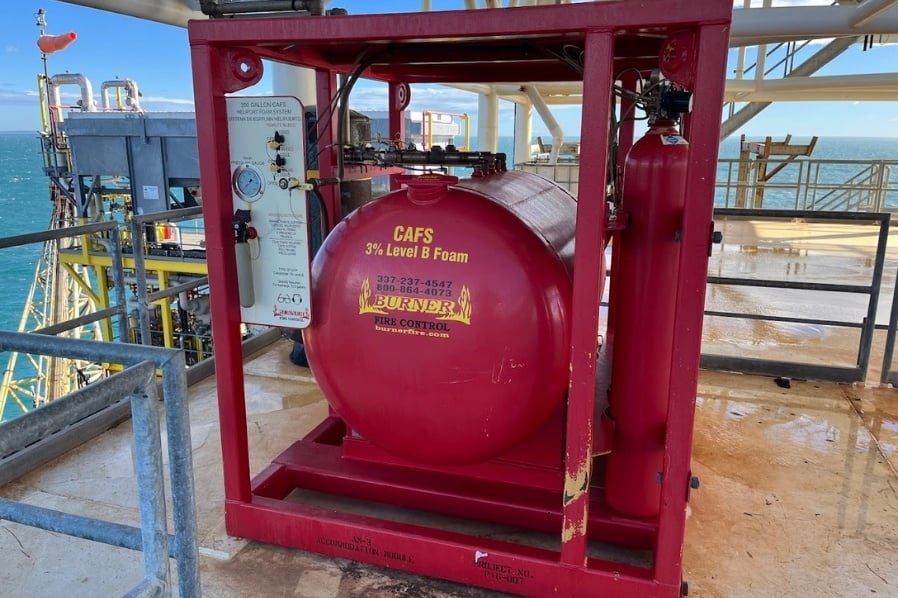

The self-contained CAFS System is designed to operate electronically or pneumatically via a control panel also mounted on the skid system with a battery backup for redundancy.  As noted, the entire system is self-contained requiring no outside source of water, foam, or power.

For more information on Helideck Compressed Air Foam Systems, visit www.burnerfire.com or call Burner Fire Control at 1-800-864-4073

References and Codes:

The National Fire Protection Association (NFPA) created NFPA 418 the Standard for Heliports, United States Coast Guard (USCG) Department of Homeland Security (DHS), Title 46 Part 108 that includes section 486 Fire protection for Helicopter Facilities, and Civil Aviation Authority (CAA) uses CAP 437 the Standard for Offshore Helicopter Landing Areas which contains chapter 5 Helideck Rescue and Fire Fighting Facilities.

About Burner Fire Control

Burner Fire Control delivers complete fire protection for onshore and offshore operations as well as safety, construction, fabrication, and maintenance services. Each person on our technical management team has an average of 25 years in the industrial & marine fire safety field experience.

These skills plus the industry’s most respected certifications, our growing list of client credentials, and expertise in both the offshore and onshore fields make us one of the most unique privately-held organizations in the oilfield services sector.
