Twin-Agent
Fire Protection
Skid Systems

Burner Fire Control

MITIGATION OF CLASS A, B, C FIRE HAZARDS

Description

Burner Twin-Agent Dry Chemical plus Foam Systems combine the effective response of our Dry Chemical Skid Units with added flame, cooling, and blanketing vapor mitigation of pre-mixed foam suppressant.

Integrated foam vessel can be configured for pre-mixed foam or compressed air foam (CAFS).  All Twin-Agent Fire Protection Skid Units are designed and manufactured by Burner Fire Control.  All Twin Agent Units can be certified with ABS and DNV Approvals on request.

Applications

The dual agent application is the most effective tool for mitigating extreme risk areas with multiple hazards, Flammable Liquids, Gas, and Hydrocarbons.

These units have been designed and built from the ground up for offshore applications and extreme hazard areas and suited for Offshore Oil & Gas Facilities, Marine Vessels, Aviation, Heliports, LNG Vessels and Land Wellsite; Production & Frac locations.







Twin Agent Skid Dry Chemical AFFF Fire-Fighting Equipment

TWIN AGENT SKID 200/80

  • 200 LB Purple K Dry Chemical 80 GAL Pre-Mixed Foam or CAFS
  • ASME Code Pressure Vessel
  • Effective on flammable liquid and gas fires
    Vertical or Horizontal mounting option
    Independent or Simultaneous discharge

Twin-Agent Fire Protection Skid Foam and dry chemical afff

TWIN AGENT SKID 450/150

  • 450 LB Dry Chemical 150 GAL Pre-Mixed Foam or CAFS
  • ASME Code Pressure Vessel
  • Effective on flammable liquid and gas fires
  • Vertical or Horizontal mounting
    Independent or Simultaneous discharge
  • White Finish Shown (all finishes available)

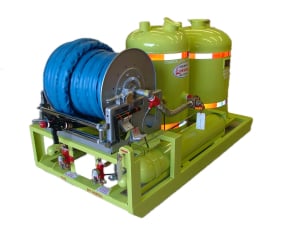

twin agent dry chemical afff arff fire system

TWIN AGENT SKID 450/150

  • FAA 139 Compliant AIRPORT RESCUE SKID
  • Custom Built for ARFF – FAA Yellow Finish
  • ASME Code Pressure Vessel
  • 450 LB Dry Chemical 150 GAL AR-Foam
  • Effective on flammable liquid and gas fires
  • Vertical or Horizontal mounting option
  • Independent or Simultaneous discharge

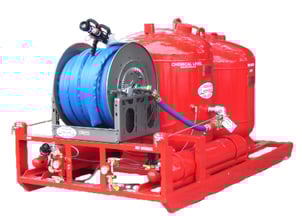

twin agent fire protection industrial system dry chemical afff



TWIN AGENT SKID 1000/150

  • 1000 LB Dry Chemical 150 GAL Pre-Mixed Foam or CAFS
  • ASME Code Pressure Vessel
  • Effective on flammable liquid and gas fires
  • Independent or Simultaneous discharge

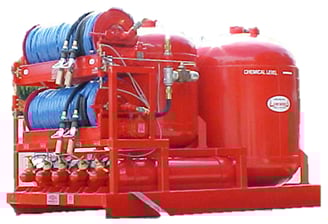

twin agent industrial fire protection system dry chemical afff 3000



TWIN AGENT SKID 3000/200

  • 3000 LB Dry Chemical 200 GAL Pre-mixed Foam or CAFS
  • ASME Code Pressure Vessel
  • Effective on flammable liquid and gas fires
  • Independent or Simultaneous discharge
